RETE METALLICA DI HEBEI REKING CO., SRL
Maglia di stampa dello schermo & maglia del filtro con acciaio inossidabile, poliestere ed il materiale di nylon di stampa di Material.Screen
RETE METALLICA DI HEBEI REKING CO., SRL
Maglia di stampa dello schermo & maglia del filtro con acciaio inossidabile, poliestere ed il materiale di nylon di stampa di Material.Screen
|
Dettagli:
Termini di pagamento e spedizione:
|
Materiale: | Acciaio inossidabile 304 | Valutazione del filtro: | 1 - 200 um |
---|---|---|---|
Tecnica: | Tessuto | Colore: | Argento/nero |
Appication: | filtro | Stile del tessuto: | Pianura |
Evidenziare: | round wire mesh screen,sintered stainless steel sheet |

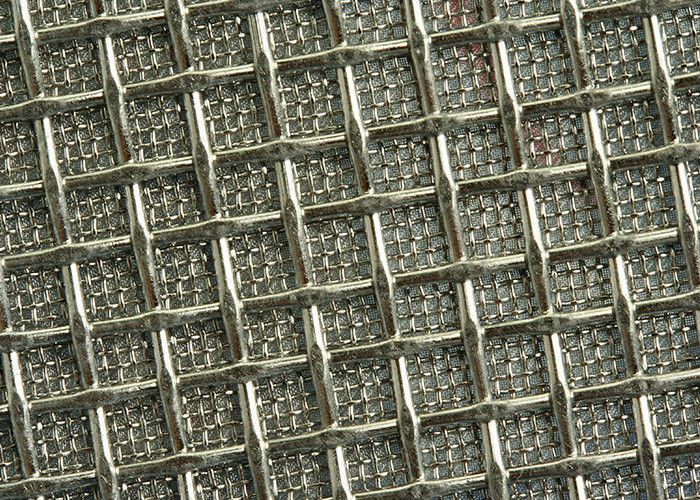

Acid and alkali resistant multilayer stainless steel sintered mesh
Product Description
Sintering can be carried out on most types of woven wire mesh. The main reason for sintering wire mesh is to bond all the wires together to eliminate the migration of the media. Woven meshes are generally prone to edge wear. One square inch of 100 mesh contains 200 wires that are in contact at 10,000 contact points - too much to bond one at a time through any other process! However, if properly sintered, almost every point will melt solidly. Then, even a small disc can be punched from the cloth without wear. This is critical in many applications, such as medical filtration or aircraft hydraulic fluid filtration, where loose wires can cause catastrophic failure. In addition, once the wire is fused, the mesh geometry is permanently fixed. The wire cannot move under pressure, so the aperture size remains stable during use.
Product Feature
• High filtration accuracy based on wire mesh
• Low dropout
• High pressure resistance and excellent toughness
• High heat resistance based on stainless steel characteristics, temperature range -269 ° C ~ 600 ° C
• Excellent corrosion resistance based on stainless steel properties
• Excellent cleanability and long-term reusability due to typical surface filtration
Product Application
• High viscosity liquid filtration, such as polymers and adhesives
• Hot fluid filtration
• Oil filtration, such as lubricating oil and turbine oil
• Fluid food filtration, if juice, cooking oil and vinegar
• Dewatering of sludge, food, etc.
Product Parameters
Note: This list for a reference, not for the complete list.
Nomin al filter rating |
structure prodextive layer+control layer +dispersion layer+ reinforce layer+ reinforce layer |
Thickness(mm) | air perm eabilit | Bubble pressure(mm) | weight (kg/m2) |
porosity (%) |
1 | 100+400*2800+100+12*64+64 | 1.7 | 1.81 | 360-600 | 5 layer 8.4 | 40% |
5 | 100+200*1400+100+12*64+64 | 1.7 | 2.42 | 260-550 | 6 layer 14.4 | 40% |
20 | 100+165*800+100+12*64+64* | 1.7 | 4.5 | 170-450 | 40% | |
200 | 40+80+40+20+40+80+40 | 2 | 26 | 50-150 | 40% |
